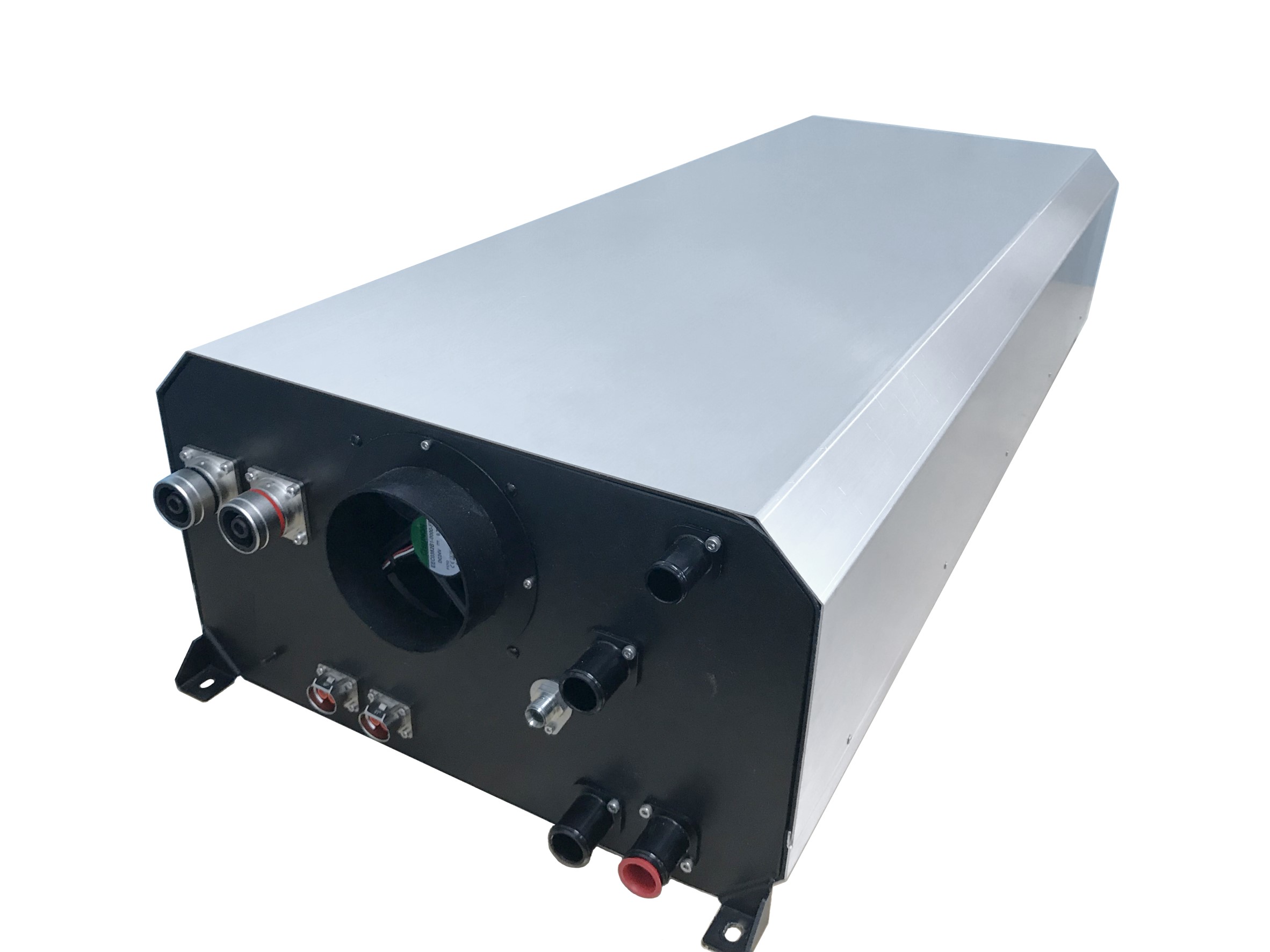

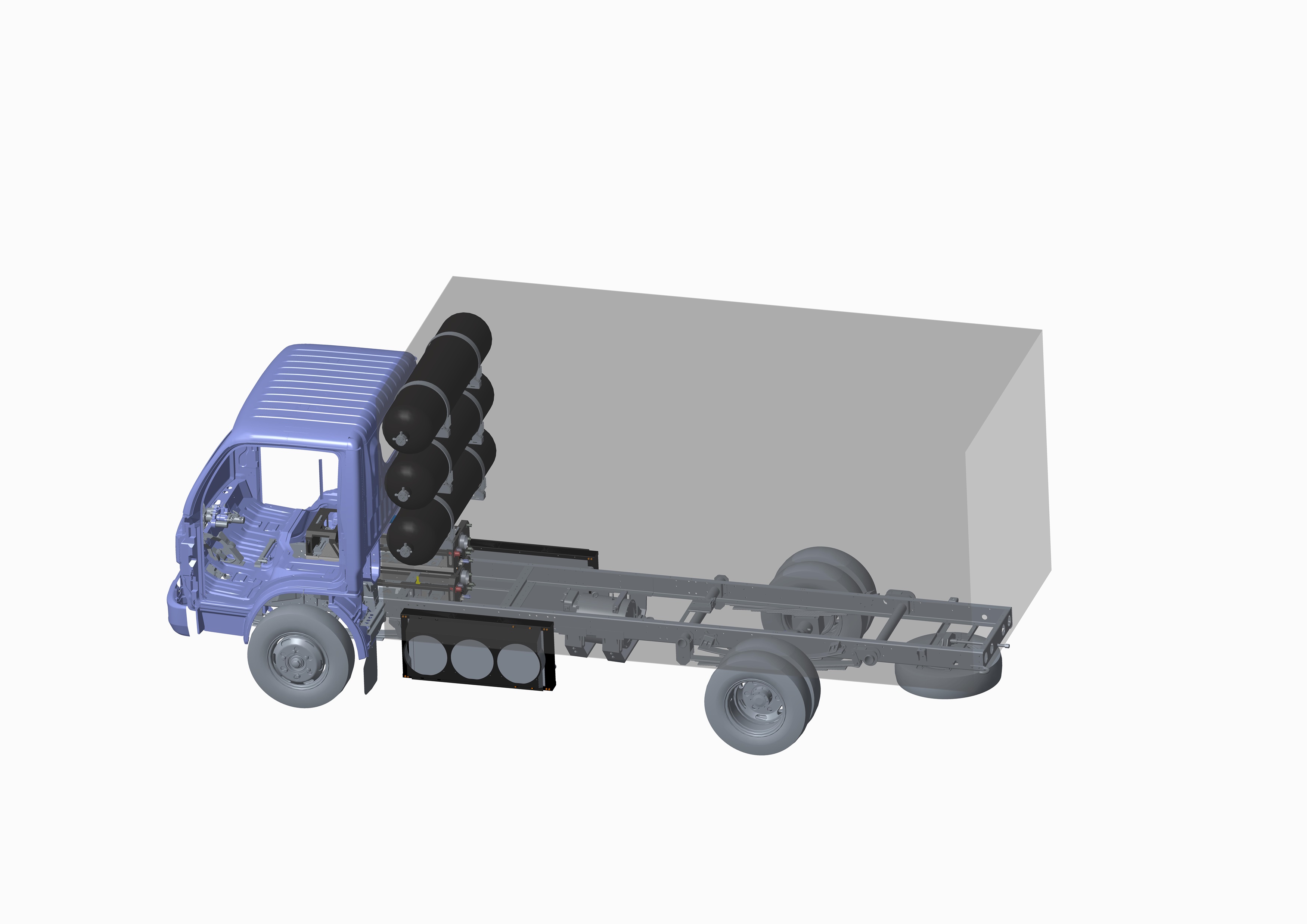

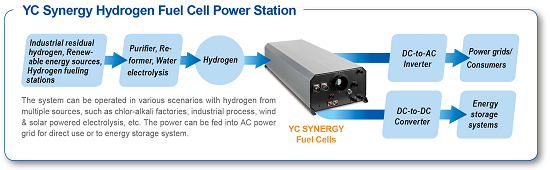

Rick series fuel cell module is an all-in-one design, which integrates subsystems including Fuel Cell stack, fuel supply system, air supply system, temperature control system, control & communication system, and electric system. And meanwhile it also provides complete safety design, robust structuring, and noise reduction. Rick series is designed for multiple-module-connection to increase the power demand to meet users’ varied applications. In the case of a system breakdown, operators can achieve rapid system recovery by individual module swapping. Rick series is a Plug-and-Play system. The module interfaces have clear specification so that the installation work is largely simplified. Rick series can serve multiple scenarios and a wide range of power demand, including automobile/motive application, mobile generator, stationary power plant, back-up power supply, and cogeneration generator.
| Item | Feature | Note |
|---|---|---|
| Rated Power | 15KW | Scalable for different power demand |
| Output Voltage | 70~110 Vdc | |
| Dimension | 112 X 44 X 25 (cm3) | 112 X 44 X 25 (cm3) For a single module |
| Filter capacity | 10 μm | |
| Cold Start-up | With A.B.: 0 sec Without A.B.: 10 sec |
A.B.: Assisting Battery |
| Noise | < 65dB | |
| Air Consumption | 900 | Unit : slpm |
| Ambient Temperature | 5~60°C | Ask for technical support if out range |
| Input H2 pressure | 0.5~1 MPa (5~10 bar) | Ask for technical support if out range |
| Altitude | -200~ 4000m | |
| Fuel Purity Requirement | 99.95% | |
| Cooling | Water-cooling | |
| Protection | IP-54 / IP-67 | Customized |
| Protocol | CAN 2.0b | 250 K |
